TOPDON TS004 Thermal Imaging Monocular 13mm 50Hz 256x192 IR Night Vision, IP67, 11h Battery, Green

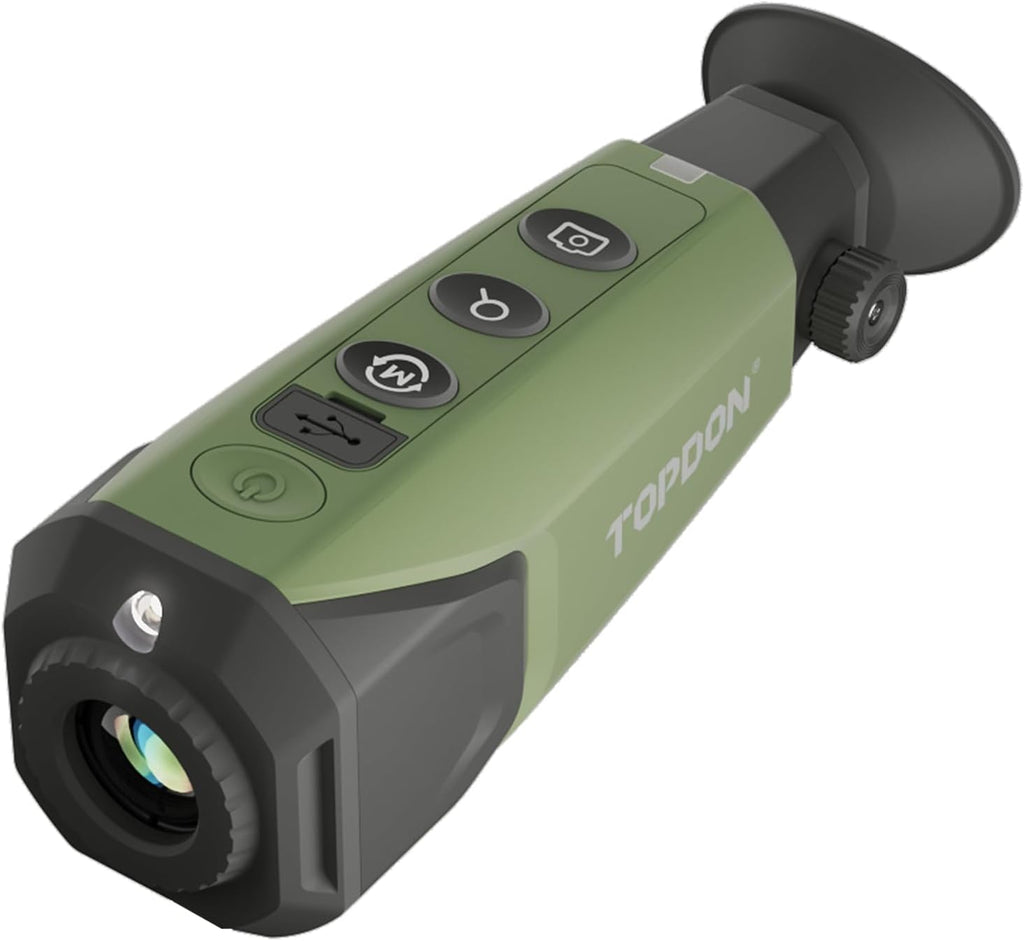

TOPDON TS004 Thermal Imaging Monocular

The TOPDON TS004 is a handheld thermal imaging monocular built for low-light and no-light observation. A 256x192 infrared sensor paired with a 50Hz refresh rate and a 13mm lens delivers smooth, detailed thermal video out to roughly 450 yards, cutting through darkness, fog, smoke and light vegetation. Rugged silicone armor and an IP67 rating keep it working in rain, dust and rough handling, while the 5000mAh battery runs up to 11 hours on a charge.

Clear Thermal Imaging, Day or Night

256x192 IR resolution with a 320x240 TISR display and a 50Hz frame rate produce fluid images with no lag as you pan. A 13.5-degree field of view and manual diopter focus let you dial in sharpness for your eye.

Up to 8x Digital Zoom

Step through 1X, 2X, 4X and 8X digital zoom with a single button to pull distant heat signatures in closer without losing the thermal picture.

5 Color Palettes

Spot targets fast with five selectable palettes: Bird, White Hot, Black Hot, Red Hot and Fusion.

Photo & Video Recording

A built-in 32GB eMMC card stores approximately 270,000 thermal images. Press the camera button to capture a still, press and hold to record video.

Wireless App Connection

Connect wirelessly to your phone with the TopInfrared app for real-time viewing, image capture and video recording with audio — even offline.

Built for the Field

IP67 waterproof and dustproof, protected against drops up to 2 meters, and wrapped in durable silicone. The waterproof hanging strap and compact body make it easy to carry in a pocket or on a wrist.

Product Overview

Simple button layout: power, zoom, camera and mode buttons on top, USB-C charging port, LED indicator, diopter adjustment knob, tripod screw hole, LED flashlight with thermal camera and a rubber eyepiece.

Specifications

• IR resolution: 256 x 192
• Display resolution (TISR): 320 x 240
• Refresh rate: 50Hz
• Lens: 13mm, manual focus

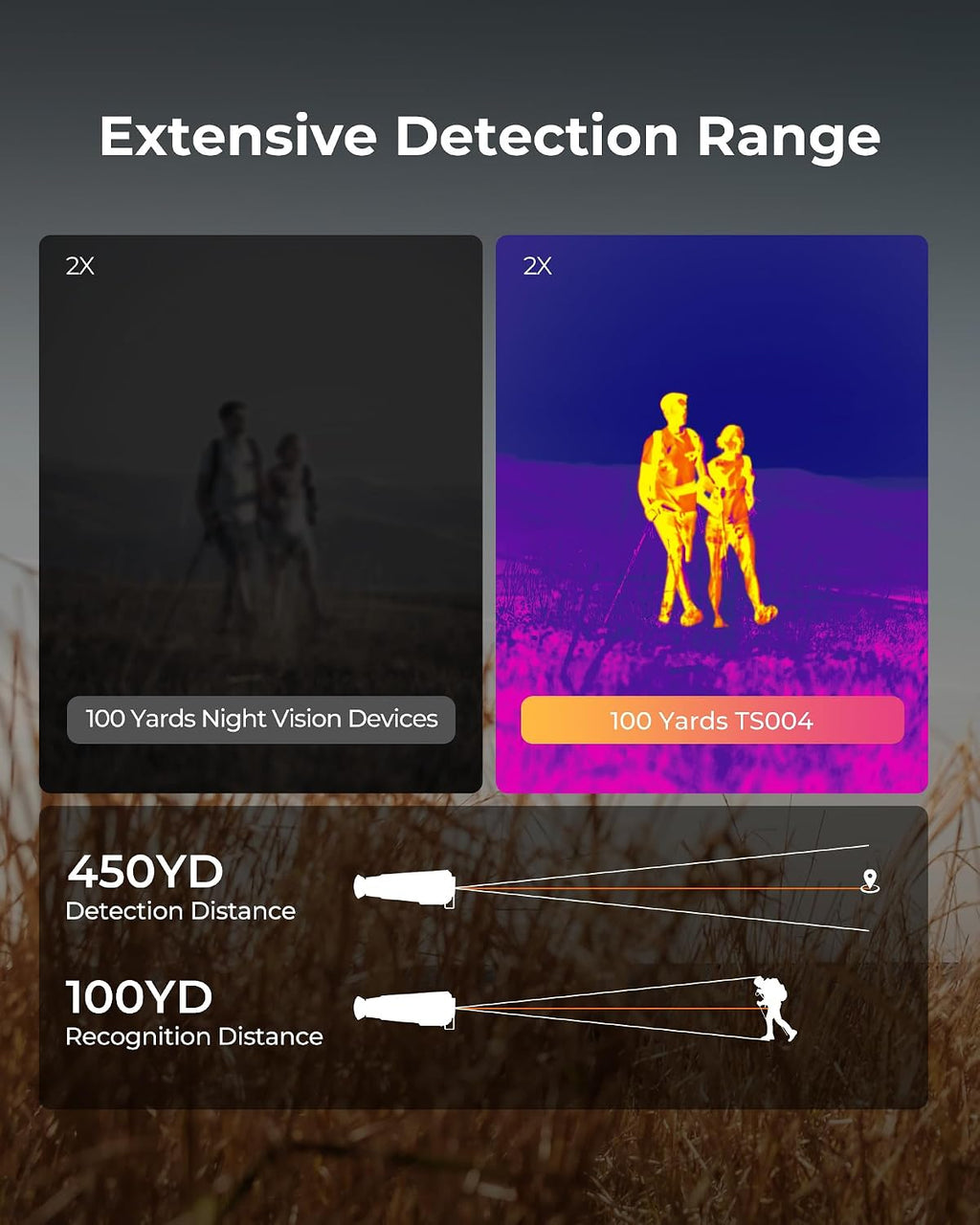

• Detection range: up to 450 yd (410 m); clear detail within 100 yd
• Field of view: 13.5°
• Digital zoom: 1X / 2X / 4X / 8X
• Color palettes: Bird, White Hot, Black Hot, Red Hot, Fusion
• Storage: 32GB built-in eMMC (approx. 270,000 images)
• Battery: 5000mAh rechargeable, up to 11 hours
• Charging: USB-C
• Connectivity: wireless to TopInfrared app (iOS / Android)
• Protection: IP67 waterproof and dustproof, 2 m drop resistance
• Color: Green
• Model: TS004

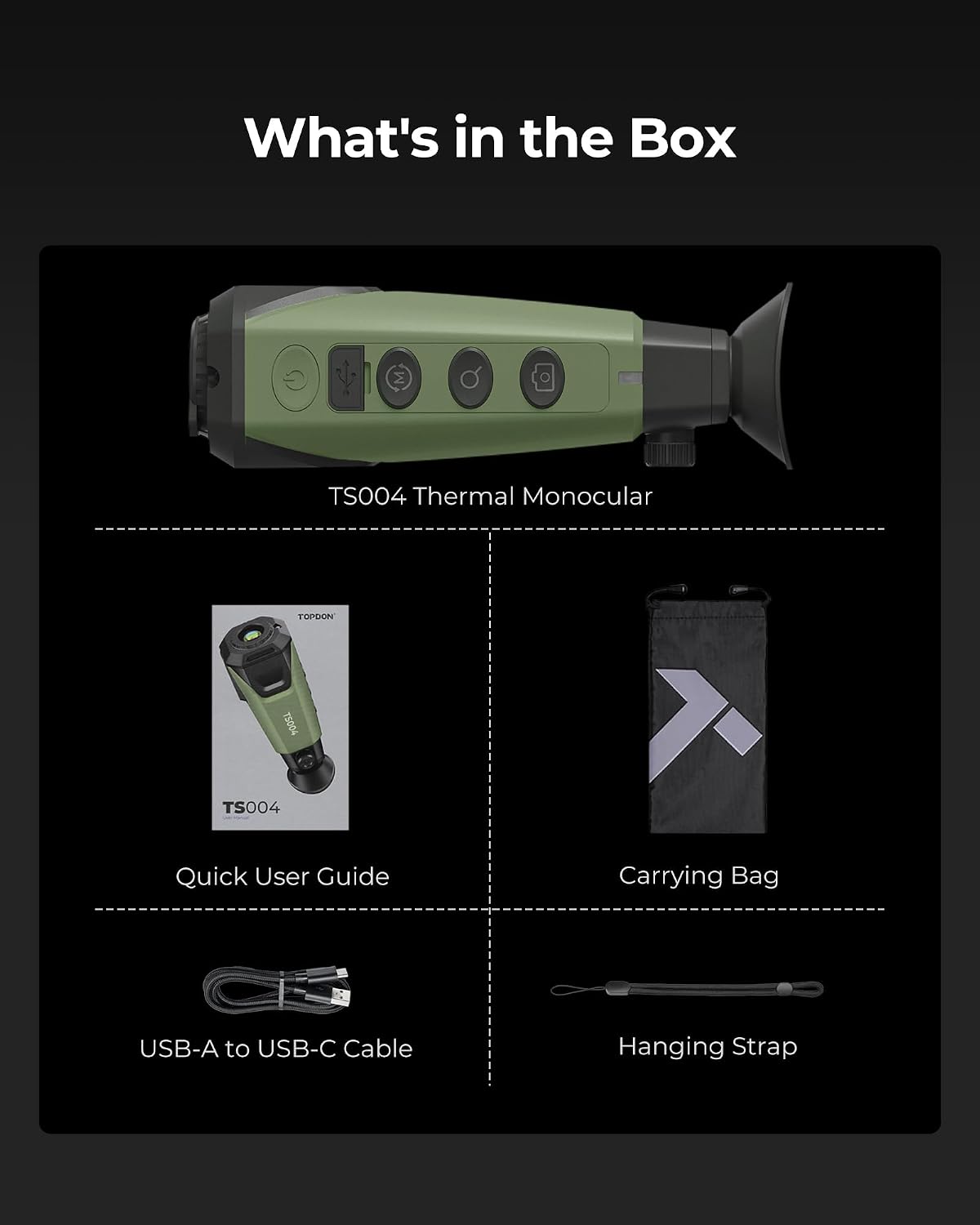

What's in the Box

• TS004 Thermal Monocular
• Carrying bag
• USB-A to USB-C cable
• Hanging strap
• Quick user guide
